3D Scanners





Trade In for Metrology 3D Scanning Solutions

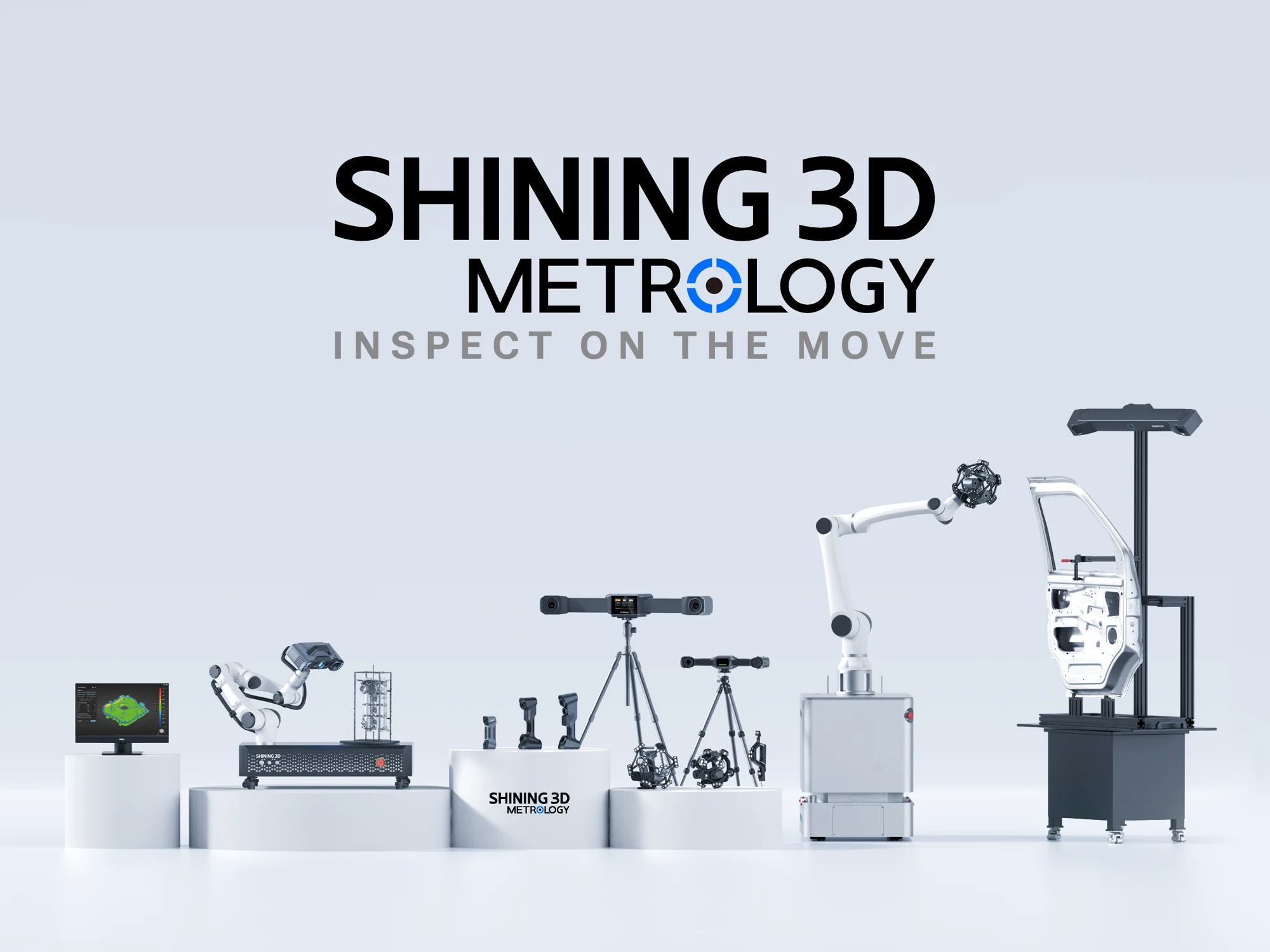

Born from 20+ years of 3D innovation, SHINING 3D Metrology redefines precision for the smart manufacturing era. INSPECT ON THE MOVE — SHINING 3D's metrology 3D scanners offer ultimate solutions for high-accuracy 3D measurement.

With the launch of our new Metrology brand, SHINING 3D is offering a global trade-in program to help you move forward with advanced metrology 3D scanning solutions.



3D Metrology Solutions



SHINING 3D offers a range of advanced metrology 3D scanners tailored to meet the needs of demanding industries and applications. From small parts like screws to large-scale objects like rocket engines, our 3D metrology solutions guarantee accurate data capture, reverse engineering, and top-tier quality control.



Small in Form, Big on Performance.

 From construction machinery to rail transit, civil aviation to energy, FreeScan Trak Nova is built to meet the diverse needs of industries requiring accurate and efficient large-scale measurements with extreme portability, productivity and versatility.



  • All-In-One Scanning System
  • Detachable Handheld Scanner
  • Dynamic Tracking
  • Integrated Video Photogrammetry
  • Completely Wireless
  • Effortlessly Portable



What You Can Achieve with Our Scanners

Discover how integrating our scanners into your workflow can enhance efficiency and help you achieve remarkable results.


Engineering Machinery & Other Transportation

 FreeScan UE Nova excels in this field with its large FOV of up to 2.6 x 2.2 m and 50 blue laser lines,

enabling efficient scanning of large machinery like excavators and bulldozers. When paired with TE

Nova, it forms a dynamic tracking system that ensures high accuracy even in unstable environments,

making it an ideal tool for comprehensive engineering tasks such as simulation analysis, wear

detection and repair.



Energy & Heavy Industry & Public Utilities

The dynamic tracking system offers versatile working modes (Near, Standard, Far) to accommodate

various distances and conditions. Moreover, its markerless scanning allows precise data capture

within a 3.5-meter tracking range. The wireless and portable design allows flexible scanning in hard­

to-reach areas without cable constraints. All of features make it very suitable for large facilities

scanning like power plants and wind farms.



Automotive

In the automotive sector, the versatile Trak Nova can accurately scan both flat surfaces and complex

details. The combination of agility, lightweight design, and ensured accuracy in 30 scanning makes it

ideal for capturing a wide range of vehicle parts-from hoods, door panels, and spoilers to the

 intricate interiors that are often challenging to navigate.

Technical Data



High-speed Scan

Included (50 laser lines)

Detailed scan

Included (7 parallel laser lines)

Deep pockets scan

Included (1 laser line)

Volumetric accuracy

0.046 + 0.012 mm/m (extension volume)

Flexible FOV

Up to 2600 x 2200 mm

VPG

Included (no coded markers required)

Connection

Wireless & Wired mode (Fiber optic)

Certifications

CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX

Acceptance test



VDl/VDE 2634 Part3 (certificated in ISO 17025 certificated accuracy lab)
